| SMD蜂鳴器 >> SMD電磁無源蜂鳴器 >> SMD-085028H-03027 |
 |
|
| 產品型號： |
SMD-085028H-03027 |
| 規格說明： |
| Resonant Frequency (Hz) |
2731 |
2731 |
2731 |
| Operating Voltage (Vp-p/max) |
1.3 ~ 2.5 |
2.0 ~ 5.0 |
3.0 ~ 7.0 |
| Rated Voltage (Vp-p) |
1.5 |
3.0 |
5.0 |
| Current Consumption (mA/max) |
80 |
100 |
80 |
| Sound Pressure Level at 10cm(dB/min) |
80 |
85 |
85 |
| Coil Resistance (Ω) |
7 ±3 |
16 ±3 |
32 ±3 |
| Dimension(mm) |
8.5 x 8.5 x H2.8 |
| Case material and colour |
LCP( Black ) |
| Weight (g) |
0.8 |
| Operating Temperature (℃) |
-25 ~ +70 |
| Storage Temperature (℃) |
-30 ~ +80 |
| *Applying rated voltage (Resonant frequency, 1/2 duty, Square wave) | |

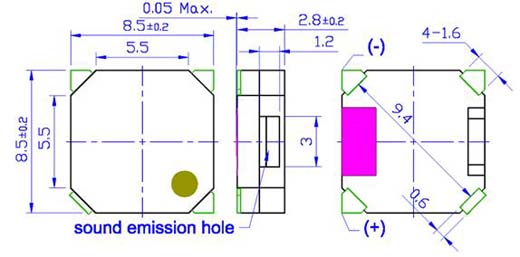

| 尺寸圖： |
|

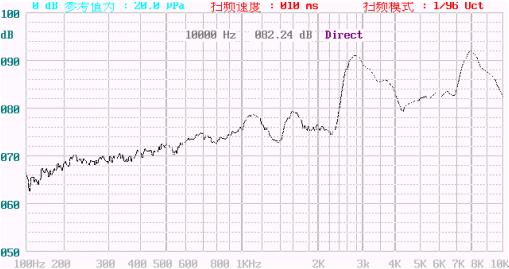

| 曲線圖： |
|
|
