| SMD蜂鳴器 >> SMD電磁無源蜂鳴器 >> SMD-050025F-03040 |
 |
|
| 產品型號： |
SMD-050025F-03040 |
| 規格說明： |
| Resonant Frequency (Hz) |
4000 |
| Operating Voltage (Vp-p/max) |
2.0 ~ 5.0 |
| Rated Voltage (Vp-p) |
3.0 |
| Current Consumption (mA/max) |
100 |
| Sound Pressure Level at 10cm(dB/min) |
75 |
| Coil Resistance (Ω) |
12 ±3 |
| Dimension(mm) |
5 x 5 x H1.9 |
| Case material and colour |
LCP( Black ) Top(Brass) |
| Weight (g) |
0.3 |
| Operating Temperature (℃) |
-25 ~ +70 |
| Storage Temperature (℃) |
-30 ~ +80 |
| *Applying rated voltage (Resonant frequency, 1/2 duty, Square wave) | |

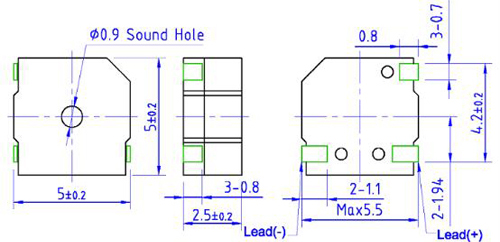

| 尺寸圖： |
|

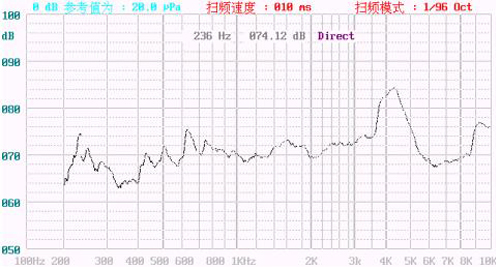

| 曲線圖： |
|
|
