SMD Buzzer >> SMD Piezo Transducer >> SMD-16025F-05040

Model：

SMD-16025F-05040

Spec：

Resonant Frequency (Hz)	4000+ -300
Operating Voltage (Vp-p/max)	1.0 ~ 25.0
Rated Voltage (Vp-p)	5.0
Current Consumption (mA/max)	2
Sound Pressure Level at 10cm(dB/min)	75
Coil Resistance	15000+ -30%
Dimension(mm)	16.0 x 16.0 x H2.5
Case material and colour	LCP( Black )
Weight (g)	1.2
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

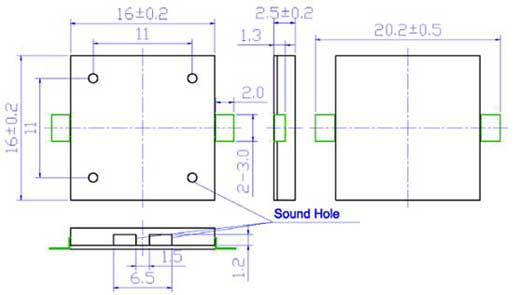

Size：

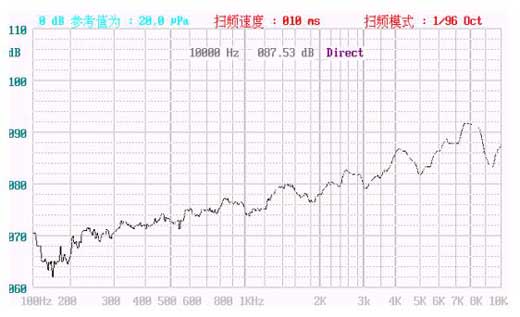

Curve：
