SMD Buzzer >> SMD Piezo Buzzer >> SMD-24120F-12034

Model：

SMD-24120F-12034

Spec：

Resonant Frequency (Hz)	3400+ -300
Operating Voltage (Vp-p/max)	3.0 ~ 16.0
Rated Voltage (Vp-p)	12.0
Current Consumption (mA/max)	12
Sound Pressure Level at 10cm(dB/min)	90
Coil Resistance
Dimension(mm)	12.8 x 12.8 x H10.0
Case material and colour	PPS( Black )
Weight (g)	4.2
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

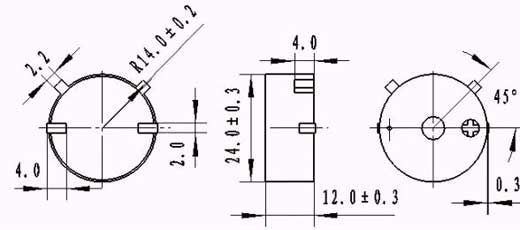

Size：

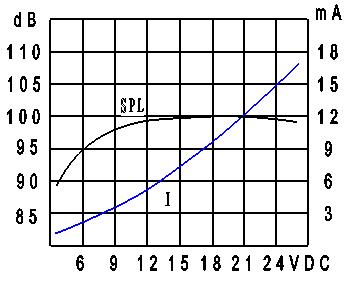

Curve：
