Electro-Magnetic Transducer >> SLA-095065H-015027/03027

Model：

SLA-095065H-015027/03027

Spec：

Resonant Frequency (Hz)	2731	2731
Operating Voltage (Vp-p/max)	1.0 ~ 2.0	2 ~ 4
Rated Voltage (Vp-p)	1.5	3
Current Consumption (mA/max)	80	100
Sound Pressure Level at 10cm(dB/min)	85	70
Coil Resistance	5.5+ -1	15+ -2
Case material and colour	PPO/Black
Weight (g)	0.8
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

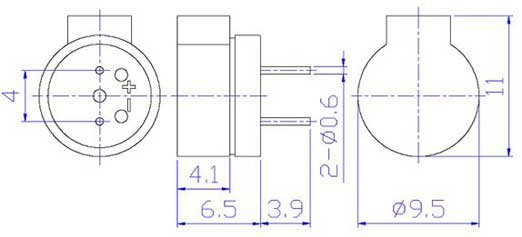

Size：

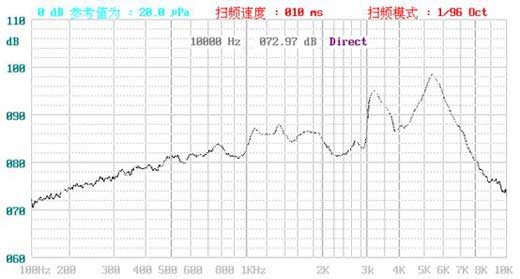

Curve：
