Electro-Magnetic Transducer >> SLA-12054F-03027

Model：

SLA-12054F-03027

Spec：

Resonant Frequency (Hz)	1000	2731
Operating Voltage (Vp-p/max)	1.0 ~ 3.0	2 ~ 5
Rated Voltage (Vp-p)	1.5	3.0
Current Consumption (mA/max)	30	50
Sound Pressure Level at 10cm(dB/min)	75	78
Coil Resistance	16+ -3	50+ -5
Case material and colour	PPO/Black
Weight (g)	1.4
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

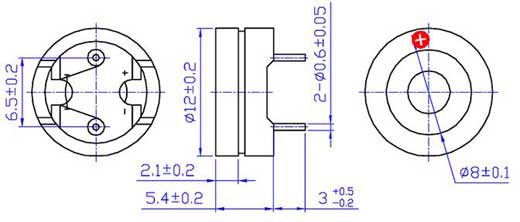

Size：

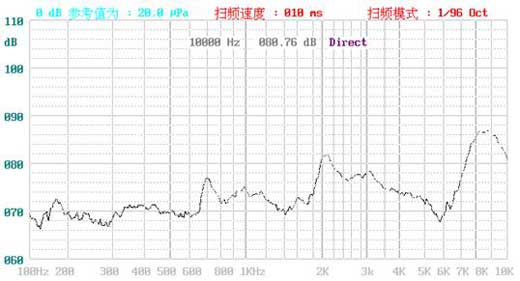

Curve：
