Electro-Magnetic Transducer >> SLC-12085F-01020/06019

Model：

SLC-12085F-01020/06019

Spec：

Resonant Frequency (Hz)	2048	1970
Operating Voltage (Vp-p/max)	1.0 ~ 2.0	3 ~ 8
Rated Voltage (Vp-p)	1.5	6.0
Current Consumption (mA/max)	12	40
Sound Pressure Level at 10cm(dB/min)	85	90
Coil Resistance	27+ -2	50+ -5
Case material and colour	PPO/Black
Weight (g)	4.6
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

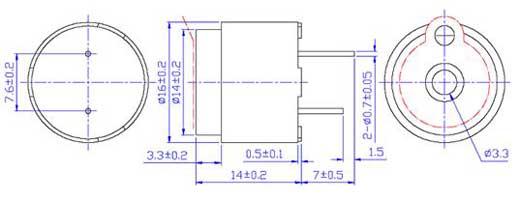

Size：

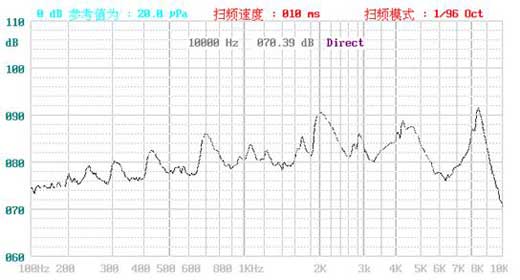

Curve：
