Electro-Magnetic Transducer >> SLC-25070F-05007/05010

Model：

SLC-25070F-05007/05010

Spec：

Resonant Frequency (Hz)	730	1000
Operating Voltage (Vp-p/max)	4.0~7.0
Rated Voltage (Vp-p)	5.0
Current Consumption (mA/max)	70
Sound Pressure Level at 10cm(dB/min)	85
Coil Resistance	30+ -2
Case material and colour	PPO/Black
Weight (g)	8.0
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

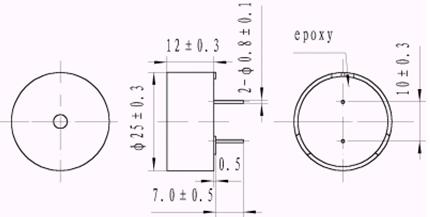

Size：

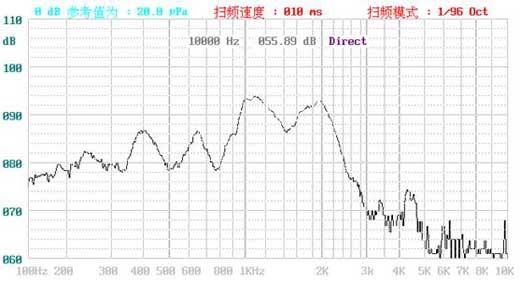

Curve：
