Electro-magnetic Buzzer >> SLB-12075F-03023/05023

Model：

SLB-12075F-03023/05023

Spec：

Resonant Frequency (Hz)	2300
Operating Voltage (Vp-p/max)	2.0 ~ 5.0	3.0 ~ 7.0
Rated Voltage (Vp-p)	3.0	5.0
Current Consumption (mA/max)	30
Sound Pressure Level at 10cm(dB/min)	85	85
Coil Resistance	Continuous
Case material and colour	PPO/Black
Weight (g)	1.6
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

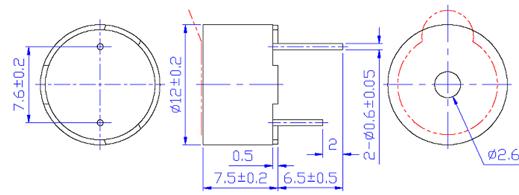

Size：

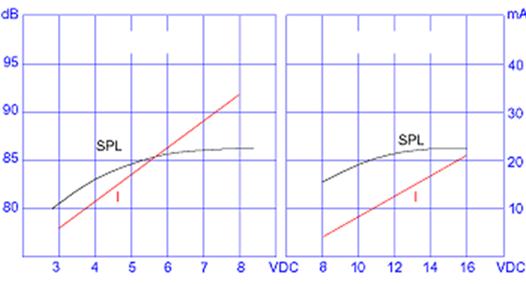

Curve：
