Electro-Magnetic Buzzer >> SPLB-160140F-03023/05023

Model：

SPLB-160140F-03023/05023

Spec：

Resonant Frequency (Hz)	2300
Operating Voltage (Vp-p/max)	1.2 ~ 2.0	3.0 ~ 8.0
Rated Voltage (Vp-p)	1.5	6.0
Current Consumption (mA/max)	30
Sound Pressure Level at 10cm(dB/min)	85	90
Coil Resistance	Continuous
Case material and colour	PPO/Black
Weight (g)	5.0
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

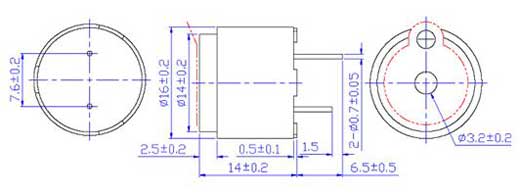

Size：

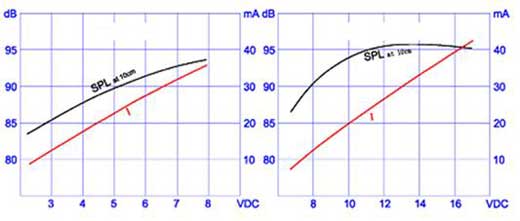

Curve：
