Piezo Transducer >> SLT-090080F

Model：

SLT-090080F

Spec：

Resonant Frequency (Hz)	2800
Operating Voltage (Vp-p/max)	1.0~30.0
Rated Voltage (Vp-p)	10.0
Current Consumption (mA/max)	4
Sound Pressure Level at 10cm(dB/min)	75
Coil Resistance	5600±30%
Case material and colour	PPO/Black
Weight (g)	0.5
Dimension (mm) See appearance drawing	Φ9 x H8
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

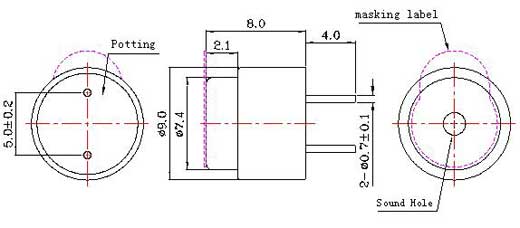

Size：

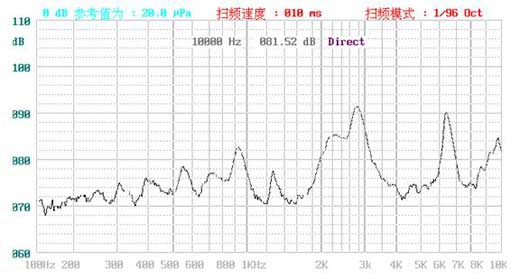

Curve：
