Piezo Transducer >> SLT-350090F-10011-W

Model：

SLT-350090F-10011-W

Spec：

Resonant Frequency (Hz)	1100
Operating Voltage (Vp-p/max)	1.0~30.0
Rated Voltage (Vp-p)	10.0
Current Consumption (mA/max)	10
Sound Pressure Level at 10cm(dB/min)	90
Coil Resistance	50000±30%
Case material and colour	ABS/Black
Weight (g)	6.3
Dimension (mm) See appearance drawing	Φ35.0 x H9.0
Operating Temperature (℃)	-20 ~ +60
Storage Temperature (℃)	-30 ~ +70
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

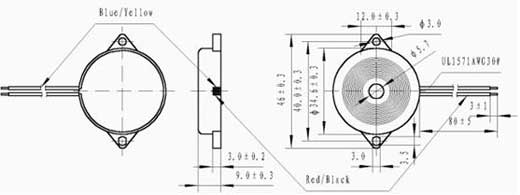

Size：

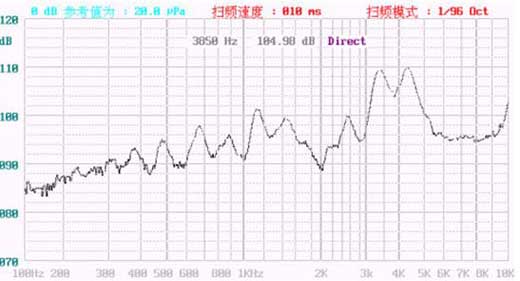

Curve：
