Mechanical Buzzer >> SLJ-180100F-01004-W

Model：

SLJ-180100F-01004-W

Spec：

Resonant Frequency (Hz)
Operating Voltage (Vp-p/max)	1.0~2.0
Rated Voltage (Vp-p)	1.5
Current Consumption (mA/max)	15
Sound Pressure Level at 10cm(dB/min)	80
Coil Resistance
Case material and colour	ABS/Black
Weight (g)	4.1
Dimension (mm) See appearance drawing	18.0 x 14.0 x H10.5
Operating Temperature (℃)	-20 ~ +60
Storage Temperature (℃)	-30 ~ +70
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

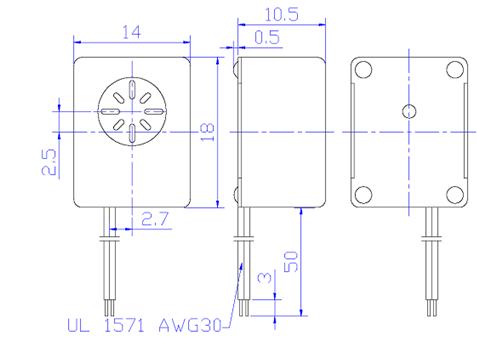

Size：

Curve：
