Mechanical Buzzer >> SLJ-260160F-06004

Model：

SLJ-260160F-06004

Spec：

Resonant Frequency (Hz)	400
Operating Voltage (Vp-p/max)	3.0~7.0
Rated Voltage (Vp-p)	6.0
Current Consumption (mA/max)	50
Sound Pressure Level at 10cm(dB/min)	100
Coil Resistance
Case material and colour	ABS/Black
Weight (g)	14.2
Dimension (mm) See appearance drawing	Ø26.0 x H16.0
Operating Temperature (℃)	-20 ~ +60
Storage Temperature (℃)	-30 ~ +70
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

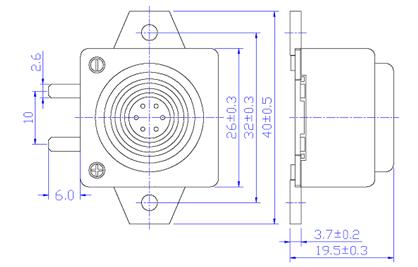

Size：

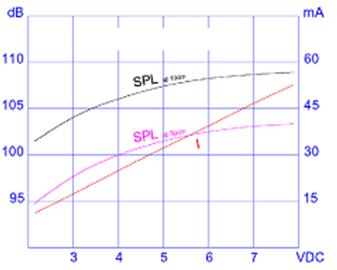

Curve：
