SMD Buzzer >> SMD Magnetic Buzzer >> SMD-085040H-03027

Model：

SMD-085040H-03027

Spec：

Resonant Frequency (Hz)	2731	2731	2731
Operating Voltage (Vp-p/max)	1.3 ~ 2.5	2.0 ~ 5.0	3.0 ~ 7.0
Rated Voltage (Vp-p)	1.5	3.0	5.0
Current Consumption (mA/max)	80	100	80
Sound Pressure Level at 10cm(dB/min)	80	85	85
Coil Resistance (Ω)	7 ±3	16 ±3	32 ±3
Dimension(mm)	8.5 x 8.5 x H3.5
Case material and colour	LCP( Black )
Weight (g)	0.8
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

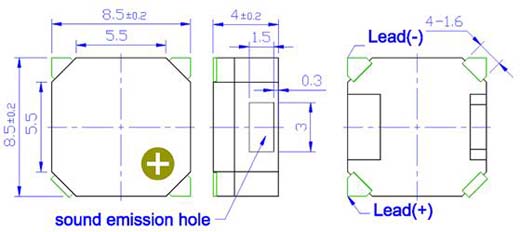

Size：

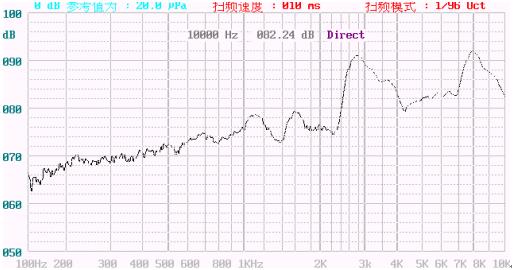

Curve：
