SMD Buzzer >> SMD Magnetic Buzzer >> SMD-090040H-03027

Model：

SMD-090040H-03027

Spec：

Resonant Frequency (Hz)	2700 ±300
Operating Voltage (Vp-p/max)	4.0 ~ 7.0
Rated Voltage (Vp-p)	5.0
Current Consumption (mA/max)	100
Sound Pressure Level at 10cm(dB/min)	90
Coil Resistance (Ω)	30 ±4
Dimension(mm)	10.6 x 9.0 x H4.0
Case material and colour	LCP( Black )
Weight (g)	0.8
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

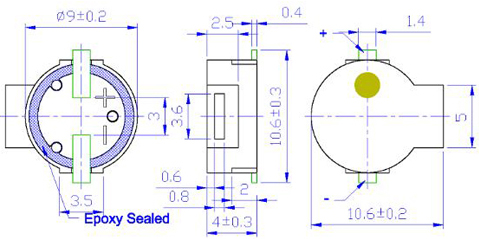

Size：

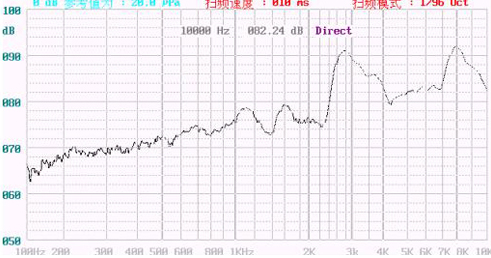

Curve：
