SMD Buzzer >> SMD Buzzer >> SMD-096050F-05027

Model：

SMD-096050F-05027

Spec：

Resonant Frequency (Hz)	2700 ±300
Operating Voltage (Vp-p/max)	4.0 ~ 7.0
Rated Voltage (Vp-p)	5.0
Current Consumption (mA/max)	30
Sound Pressure Level at 10cm(dB/min)	85

Dimension(mm)	9.6 x 9.6 x H5.5
Case material and colour	PPS( Black )
Weight (g)	1.0
Operating Temperature (℃)	-25 ~ +70
Storage Temperature (℃)	-30 ~ +80
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

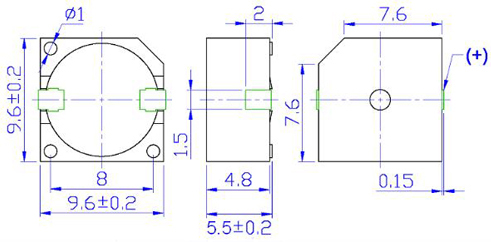

Size：

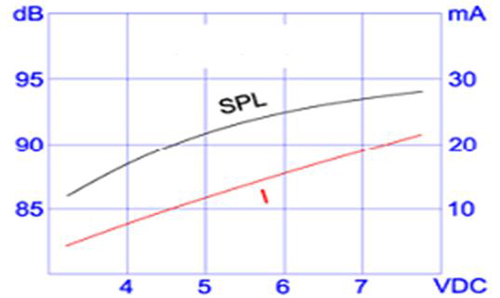

Curve：
